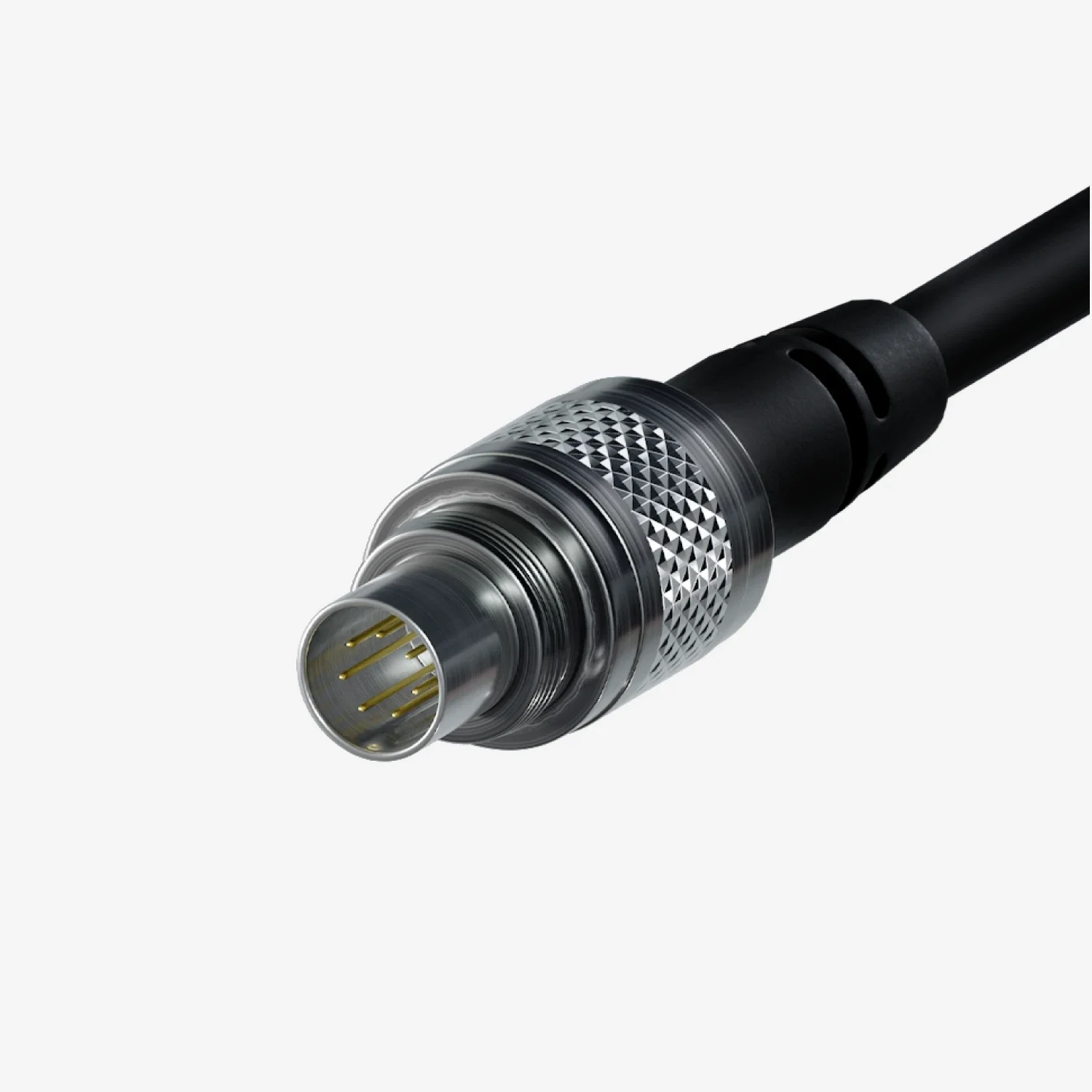

Aim Solo 2 DL RPM & External Power Cable

The Aim RPM cable is used for vehicles when the particular ECU is not supported.

Key Features :

8 pin - 712 male binder connection	3 free cables
Suitable for Solo 2 DL

RPM External Power Cable

In the unlikely event that your particular ECU is not supported, you can connect the Solo 2 DL to the coil RPM which will provide a digital input delivered from square wave signals or pulse signals.

This is one of the connection cables available for the Solo 2 DL. Others are the OBDII and the RS232/CAN cables.

---

Expand Your System

These are some of the items that can be added to your car for incrementing performance and data.

---

Technical

Aim Solo 2 DL RPM & External Power Cable

• 8 pin - 712 male binder connection
• 2m Cable
• Red - 9-15 VDC
• Black - GND
• White - RPM

What's in The Box

Aim Solo 2 DL RPM & External Power Cable

• Solo 2 DL OBDII & External power cable connector

Downloads

	Technical sheet	Race Studio 3
