Brake Pressure Sensor Kit - To suit OTK Kart

The AiM M10 0-100 Bar sensor is suitable for brake pressures up to 100 bars.

Key Features :

Suitable for OTK karts with M10 threads	0-100 bar pressure
Compatible with MyChron 4 & 5	712 - 719 4 pins patch lead

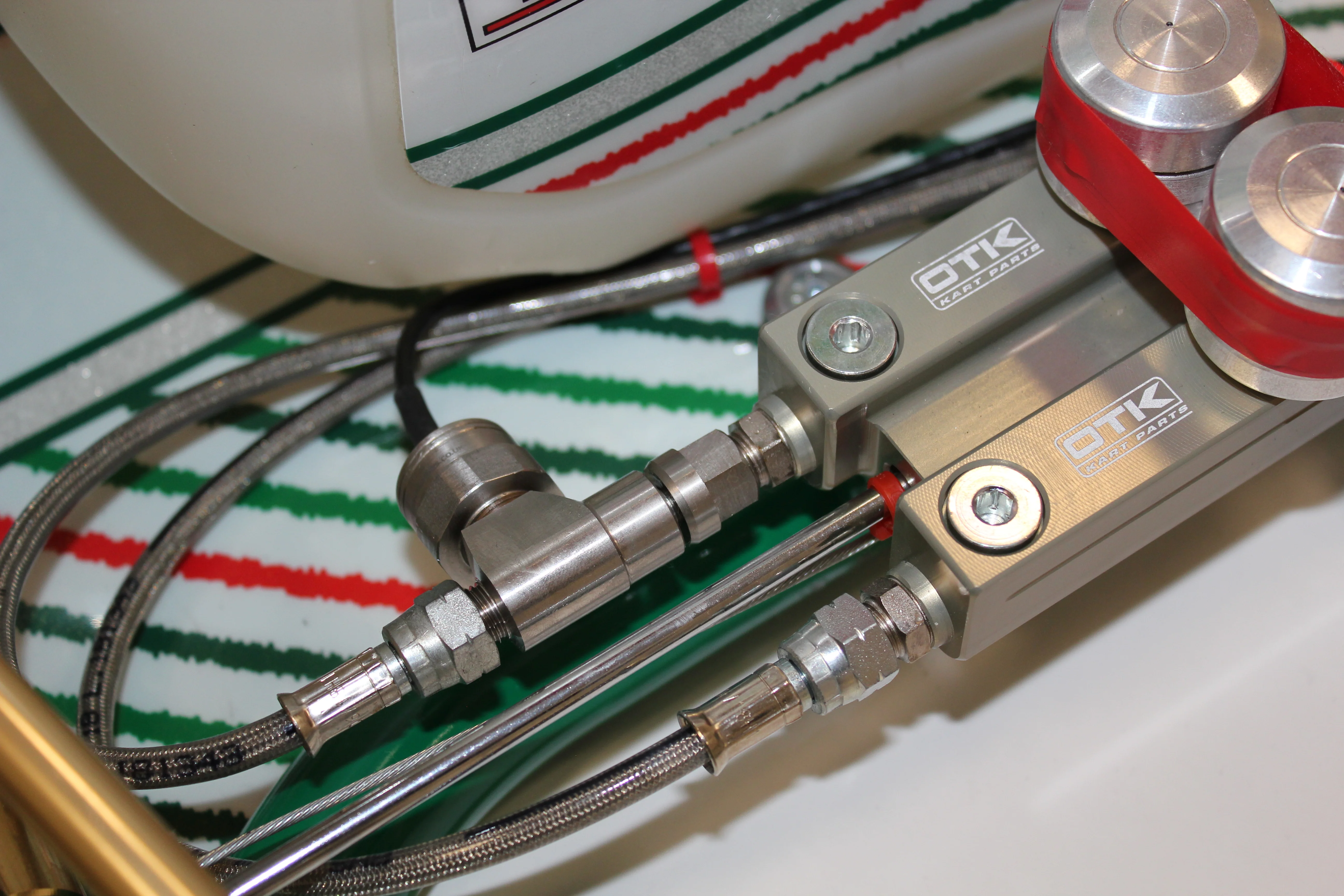

Brake Pressure Sensor Kit - To suit OTK Kart brake pressure sensor kit to suit OTK Kart measures how much pressure passes through a karts brake pedal. The kit has a stainless steel inline T piece and is suitable for all OTK karts with M10 threads.

The recorded data can be analysed after a session using race studio three software, where you can view different session data or use it compared to another driver's braking performance.

The OTK Sensor also comes with a 712 - 719 4 pin patch lead.

The brake pressure sensor will measure pressure from 0-100 Bars.
It will help the driver understand how much pressure they are applying to the pedal under braking and will help the driver improve their braking performance.

Connections

Suitable for use with the MyChron4, MyChron5, MyChron4 2T, MyChron5 2T, MyChron5 S, MyChron5 S 2T Kart Dash / Data Loggers. The sensor comes with the patch lead required to connect the sensor to the MyChron Expansion box, connecting it to your system.

Below shows how you can expand your system to help enhance your racing performance.

Technical

Brake Pressure Sensor Kit - To suit OTK Kart

Supply: 8-16V
Accuracy: < +/- 0.5% FS (CLNH – combined non-linearity and hysteresis)
Characterisation: 500 mV/ 0 bar 4500 mV/ 100 bar
Consumption: < 10 mA
Temperature working range: from -20°C to 135°C
Sealing: IP66
Housing: 316 stainless steel
Weight: 30g
Cable Length: 400mm
Thread: M10
Patch Lead: 712 - 719 4 pin binder

What's in The Box

Brake Pressure Sensor Kit - To suit OTK Kart

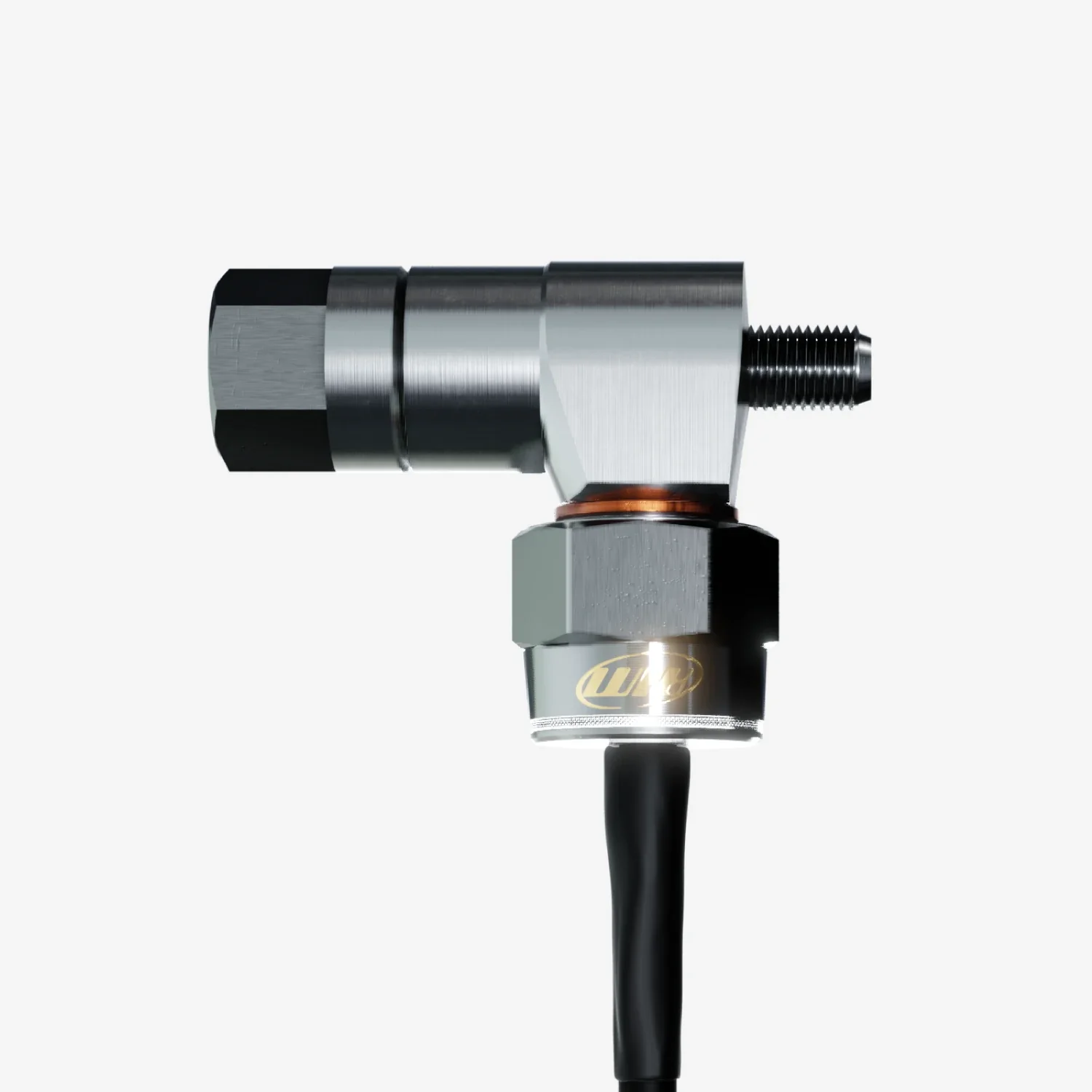

AiM Brake Pressure Sensor M10 0-100 Bar
Stainless Steel T Piece with M10 threads
Copper sealing washer
712 - 719 patch lead

Downloads


	Technical sheet	Race Studio 3

Aim Kart Pressure Sensors

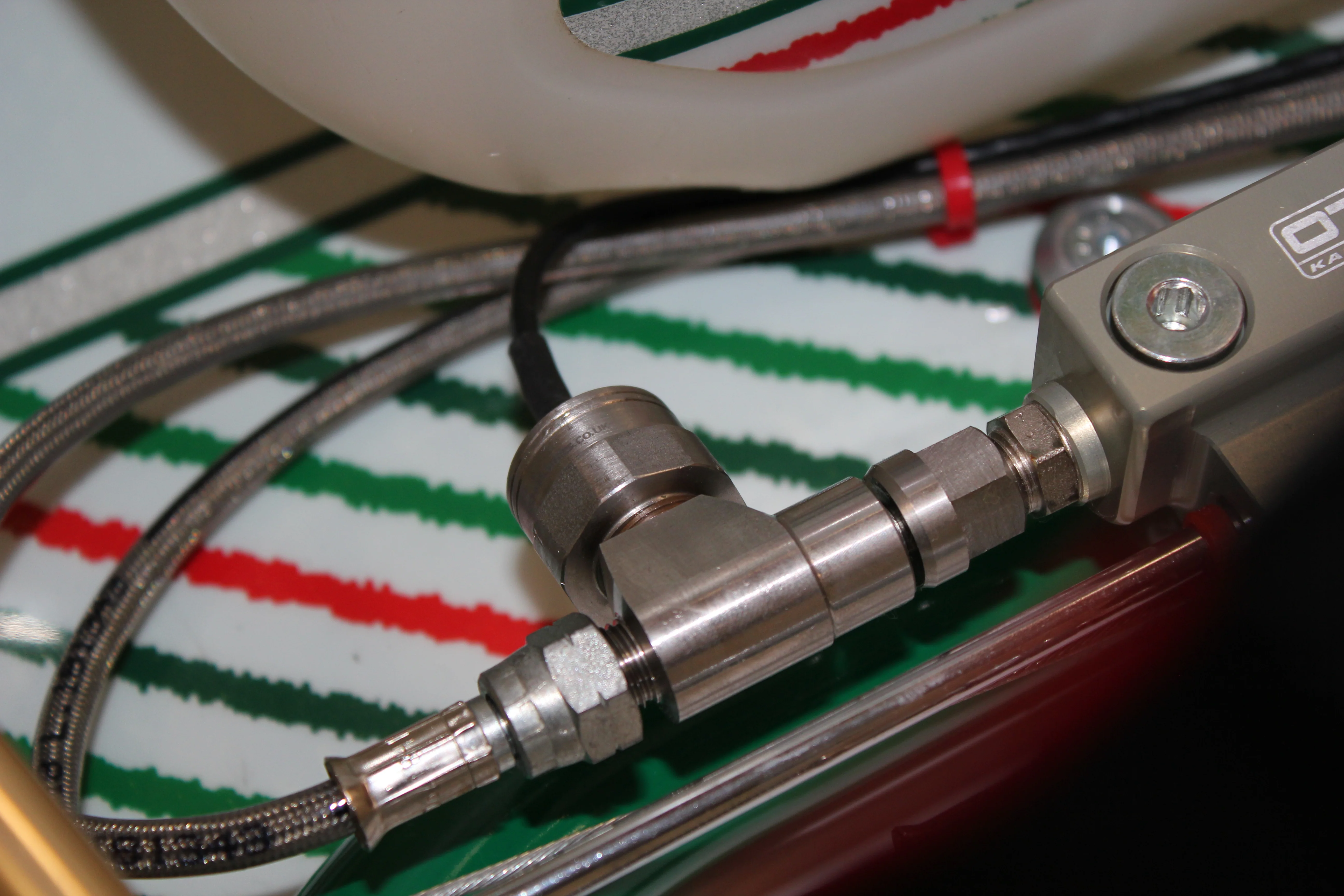

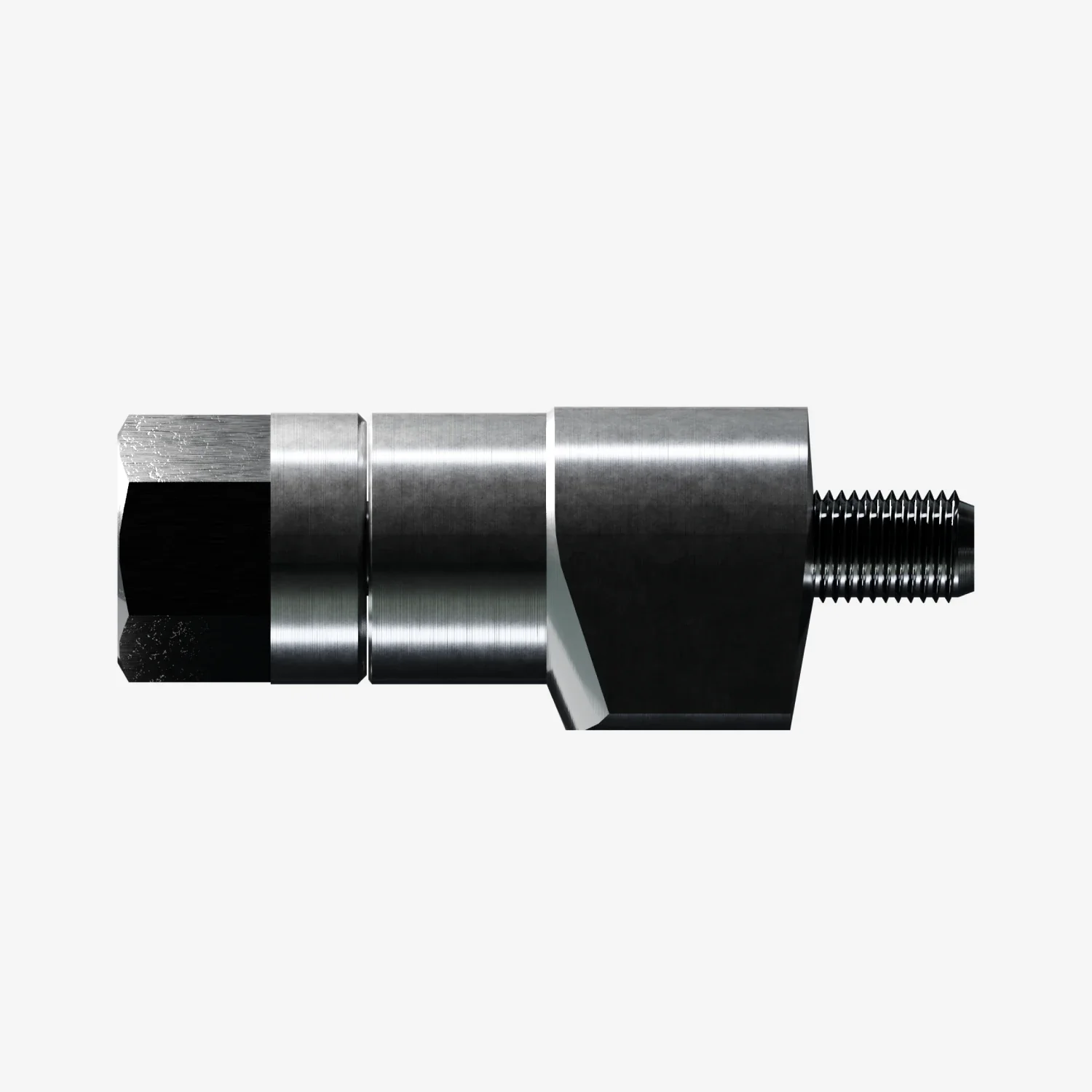

Kart Brake Pressure T-Piece
